pyFGLT: Fast Graphlet Transform in Python

We provide pyFGLT, a wrapper to a C/C++ multi-threaded library, for Fast Graphlet Transform of large, sparse, undirected networks/graphs. Graphlets are used as encoding elements to capture topological connectivity quantitatively and transform a graph \(G=(V,E)\) into a \(|V| \times K\) array of graphlet frequencies at all vertices. The \(K\)-element vector at each vertex represents the frequencies of induced subgraphs, incident at the vertex, of the graphlet patterns. The transformed data array serves multiple types of network analysis: statistical or/and topological measures, comparison, classification, modeling, feature embedding and dynamic variation, among others. The library pyFGLT is distinguished in the following key aspects. (1) It is based on the fast, sparse and exact transform formulas which are of the lowest time and space complexities among known algorithms, and, at the same time, in ready form for globally streamlined computation in matrix-vector operations. (2) It leverages prevalent multi-core processors, with multi-threaded programming in Cilk, and uses sparse graph computation techniques to deliver high-performance network analysis to individual laptops or desktop computers.

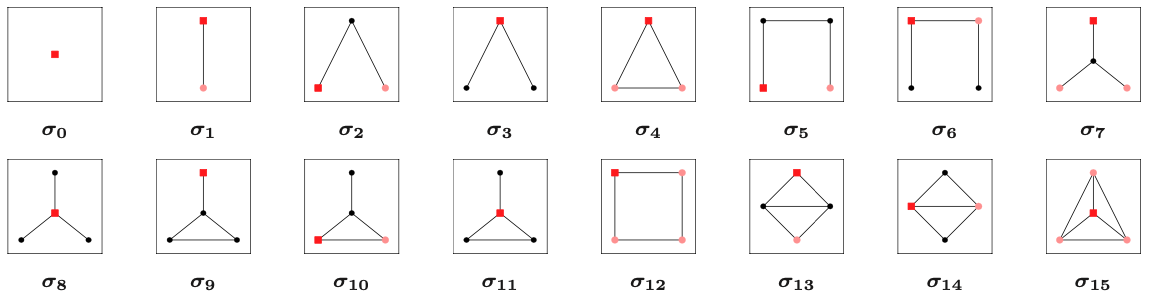

A graph element, a.k.a. graphlet, is a connected template graph with a small number of nodes with or without a designated incidence orbit (shown in red below). The graphlet patterns of up to four nodes are shown below.

Installation

Install this library using pip:

pip install pyfglt

Usage

See the examples under:

• Getting started
• Advanced usage

for a quick start and advanced usage of the library.

Citation

If you use this package, please cite this paper:

@article{fglt,
    author = {Floros, Dimitris and Pitsianis, Nikos and Sun, Xiaobai},
    journal = {IEEE HPEC},
    pages = {1--8},
    title = {{Fast graphlet transform of sparse graphs}},
    year = {2020}
}
